Traces

The Traces page answers “which requests looked like this, and how long did they take?” You filter the traces in the time range by service, endpoint, duration and errors, see them as dots on a duration-over-time chart, select a region of the chart, and open any trace as a waterfall. Traces that became stories are marked and linked.

It has two views: the explorer at /traces, and the trace view at /traces/<trace id>.

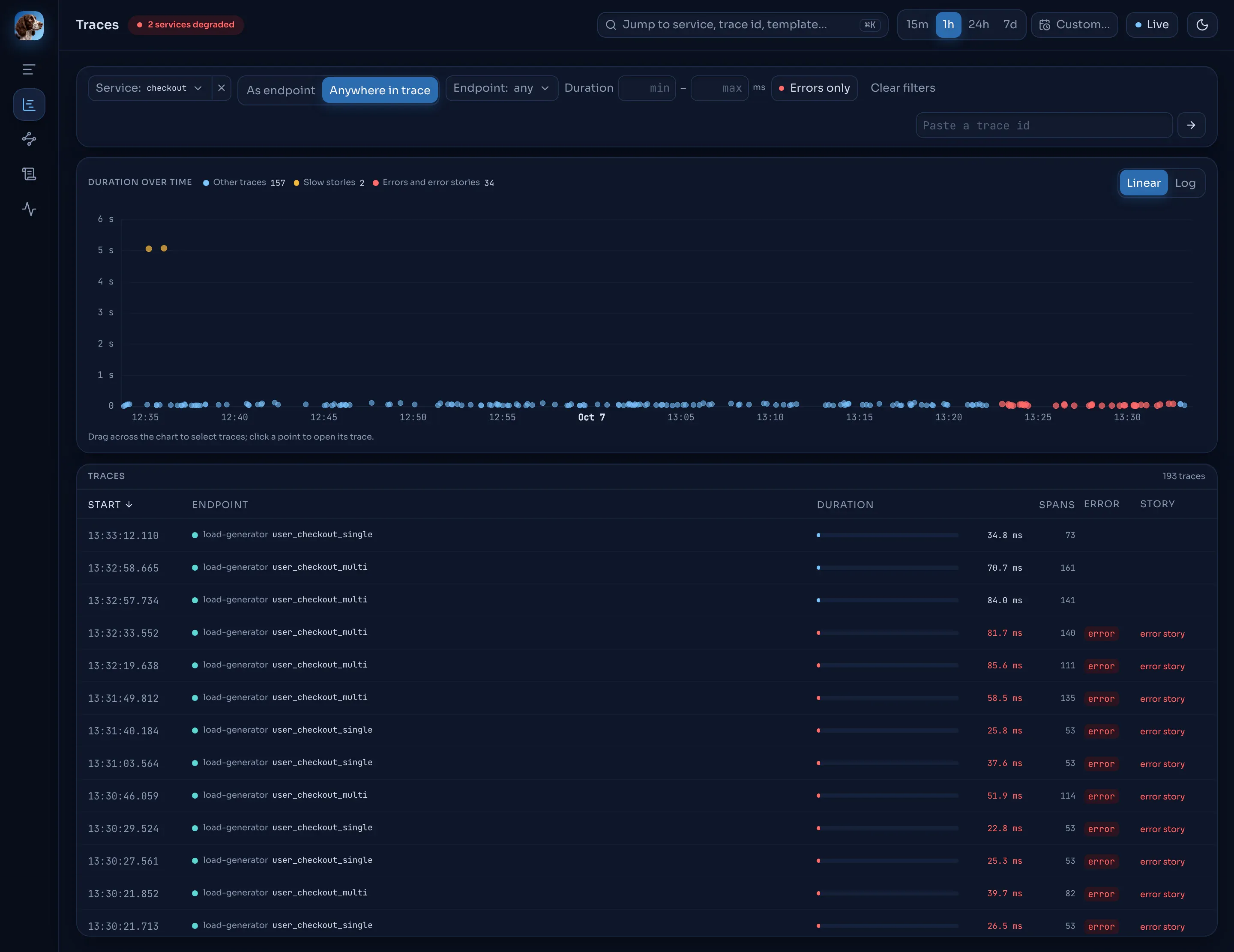

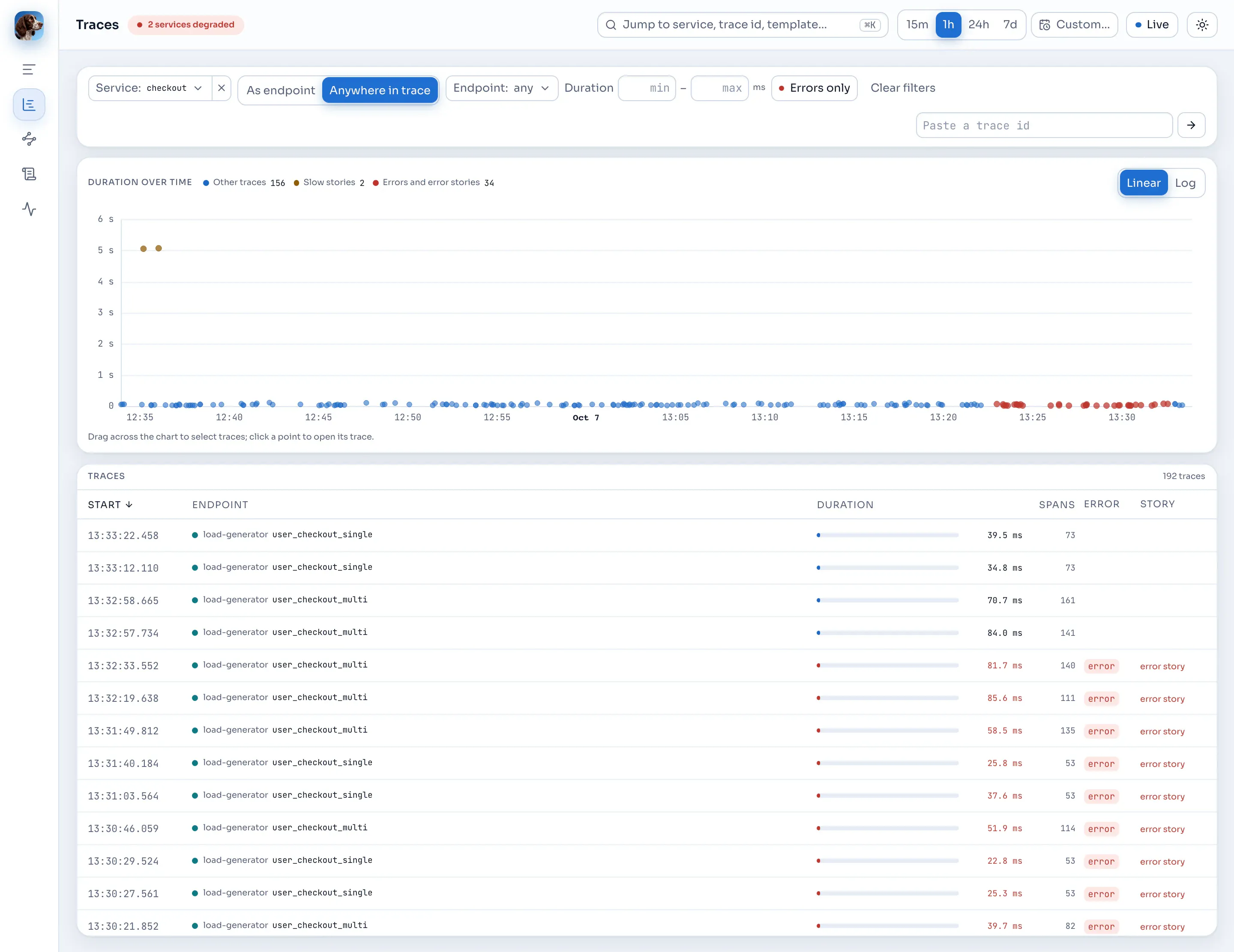

The explorer filtered to traces that touch the checkout service.

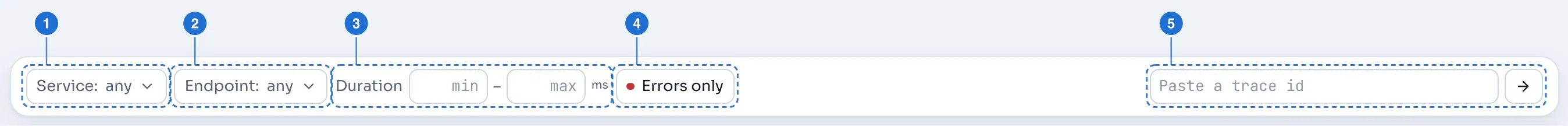

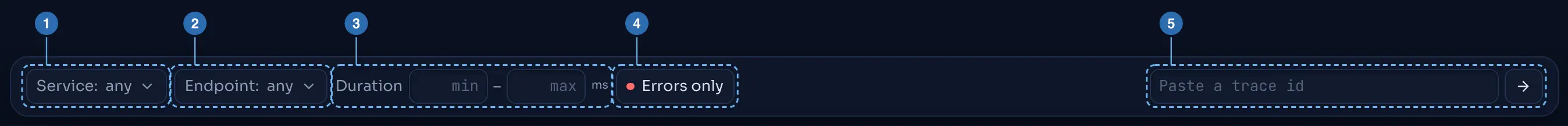

Filters

Service (1): pick a service from a searchable list; any clears it. Once a service is picked, a toggle appears beside it:
- Anywhere in trace (the default): traces in which any span belongs to the service;
- As endpoint: only traces that entered through the service.
Endpoint (2): the endpoints present in the current results, most frequent first, with a count each. Changing the service clears the endpoint.
Duration (3): a lower and an upper bound in whole milliseconds. Type a value and press Enter or leave the field to apply it. “Durations are whole milliseconds.” and “Min must not exceed max.” flag a bound that cannot be applied.
Errors only (4): only traces with an error. The button turns red while it is on.
Clear filters appears when any filter is set and removes them all.
Paste a trace id (5): paste a 32-character hex trace id to open it at once, or type one and press Enter or the arrow button. Anything else shows “Not a trace id: expected 32 hex characters.”

Every filter goes into the URL. Changing a filter clears a selection on the chart.

Duration over time

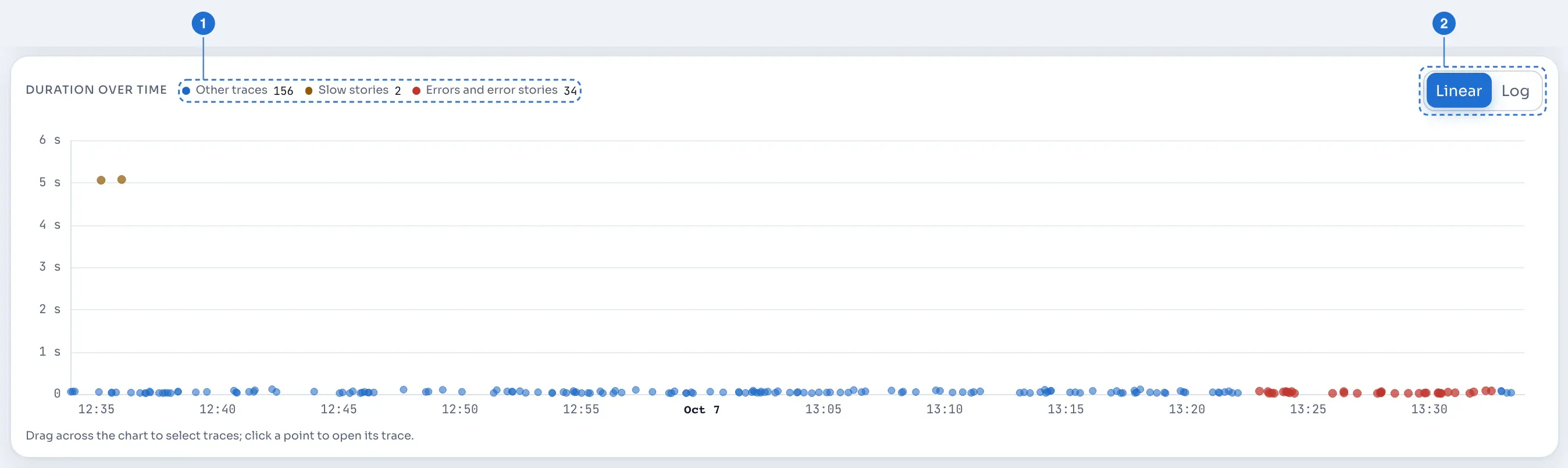

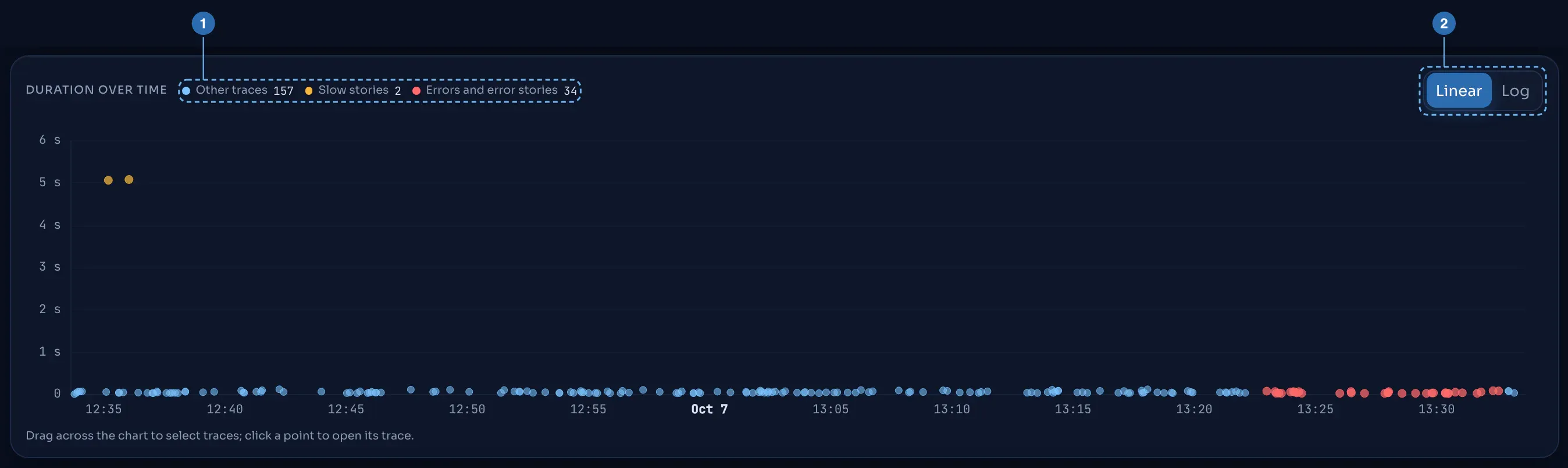

Each dot is a trace: its start time across, its duration up.

Each dot is one trace, placed by its start time and its duration.

Legend (1): Other traces (accent), Slow stories (amber) and Errors and error stories (red), with the number of each. A trace that failed, or that has an error story, counts as red.
Linear or Log (2): the scale of the duration axis. Log spreads out traces when a few slow ones would squash the rest at the bottom.
Hover over a dot to see its endpoint, duration, span count, whether it failed or has a story, and its start time.
Click a dot to open the trace. On a phone, tap it.

The chart covers the whole time range. The API returns at most the 500 newest traces that match; when that limit is reached the chart says “Showing the newest 500; narrow the filters to reach older traces.” and the chart’s time axis covers just those traces.

Selecting traces on the chart

Drag a rectangle across the chart. The dots outside it fade, and the table below lists only the traces inside it: 12 of 500 selected.
To change it, drag a new rectangle. To remove it, select Clear selection above the chart.

The selection is kept in the URL (sel), so you can share “these slow traces between 14:02 and 14:05”.

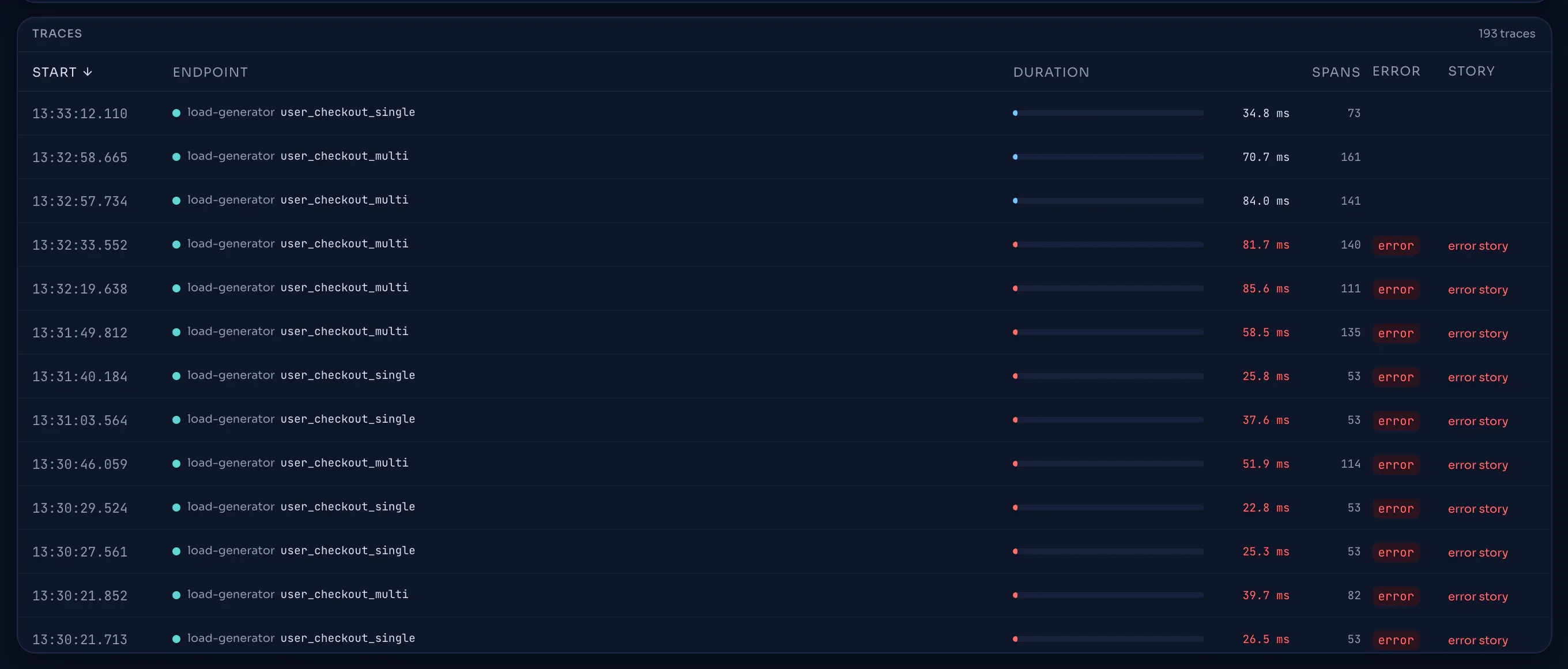

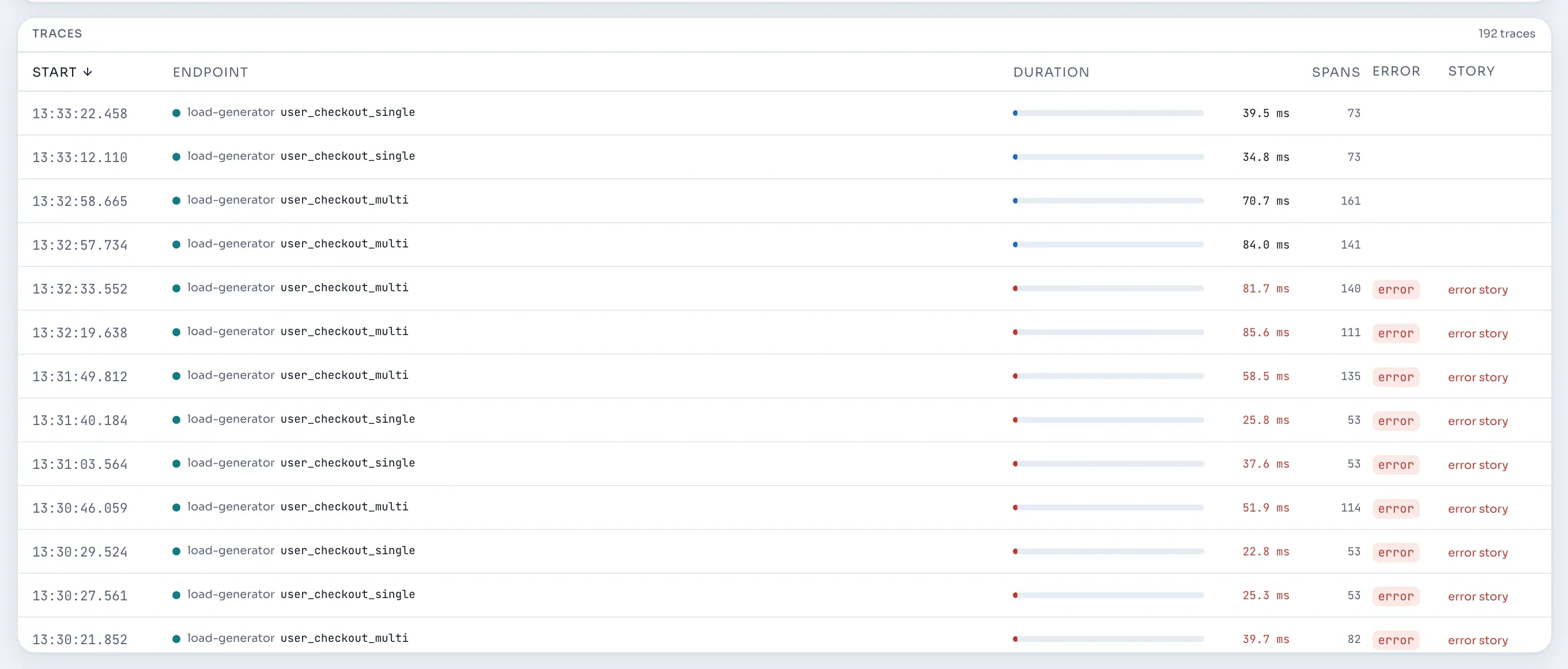

Traces table

Start: the start time, with milliseconds for ranges up to an hour that end now, and with the date otherwise. Hover over it to see the full date and time.
Endpoint: the service and operation the trace entered through. Select it to open the trace.
Duration: a bar on the same scale as the chart (linear or log), coloured like the dot, and the duration.
Spans: the number of spans.
Error: an error badge when the trace failed.
Story: error story or slow story when Tayga built a story for the trace; select it to open the story.

Sort by Start, Endpoint, Duration or Spans by selecting the column header, and select it again to reverse. The default is newest first. With the table focused, PageUp, PageDown, Home and End scroll it. On a phone, Spans is hidden and each row takes two lines.

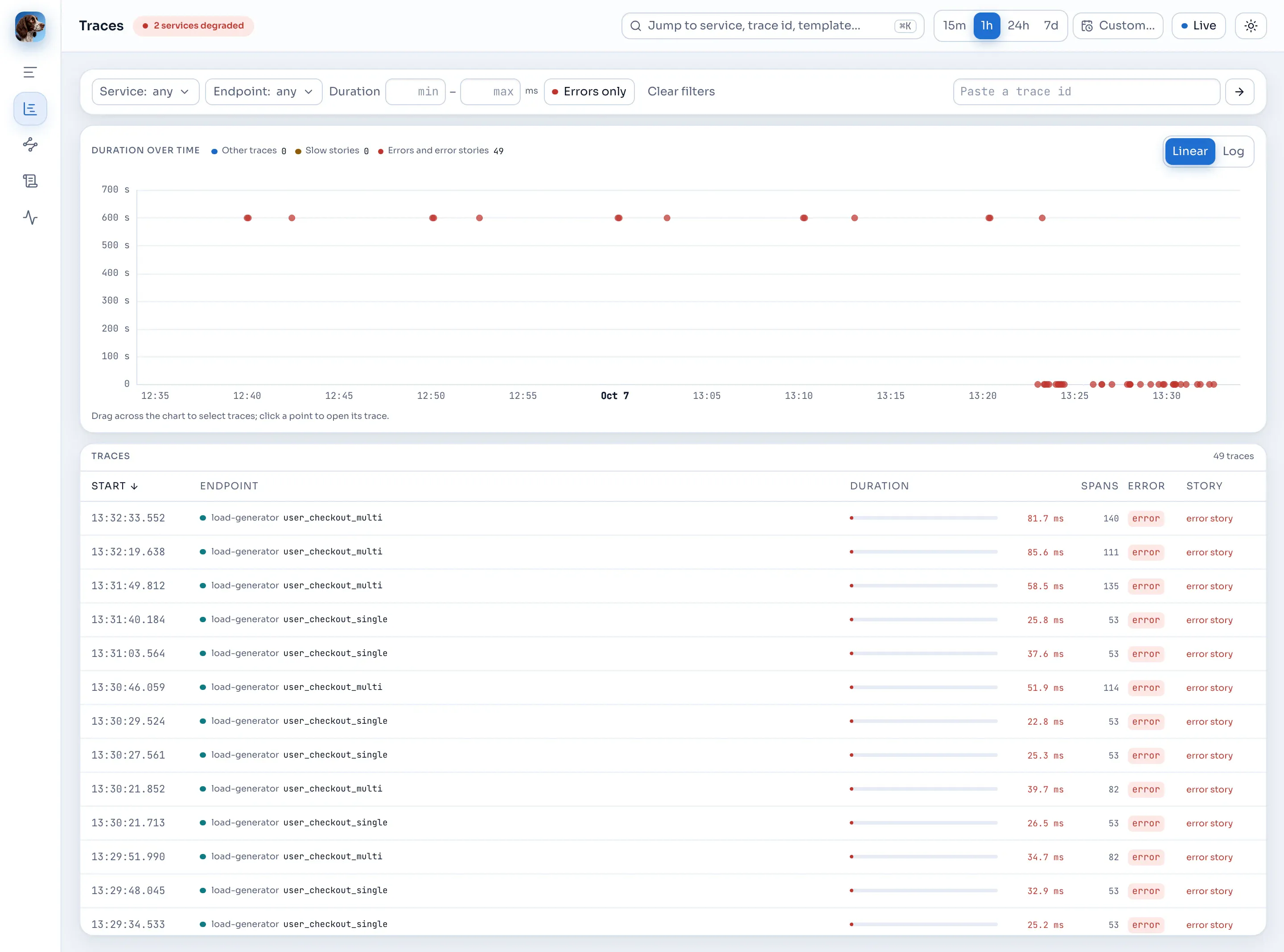

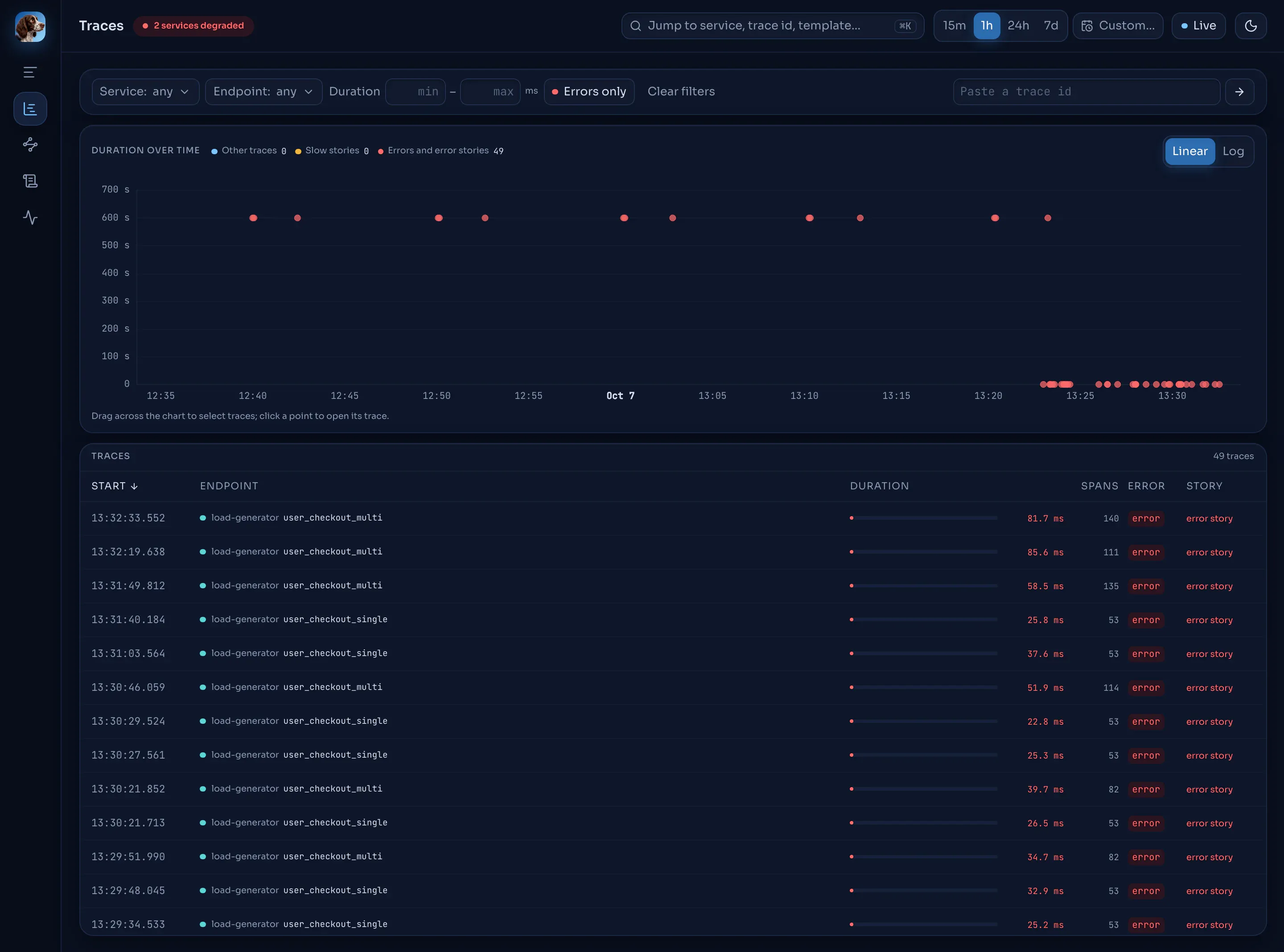

Errors only: failing traces and their stories.

Empty states

“No traces match” when the filters find nothing. It suggests Clear filters. If you filtered by a service As endpoint, it explains that the service may still take part in other traces and offers Match <service> anywhere in the trace.
With no filters, “No traces in the last 1h.” suggests a longer range.
“No traces in the selection” when the rectangle holds no dots, with Clear selection.
When the search fails, a red banner, “Could not load traces.”, with Try again.

Trace view

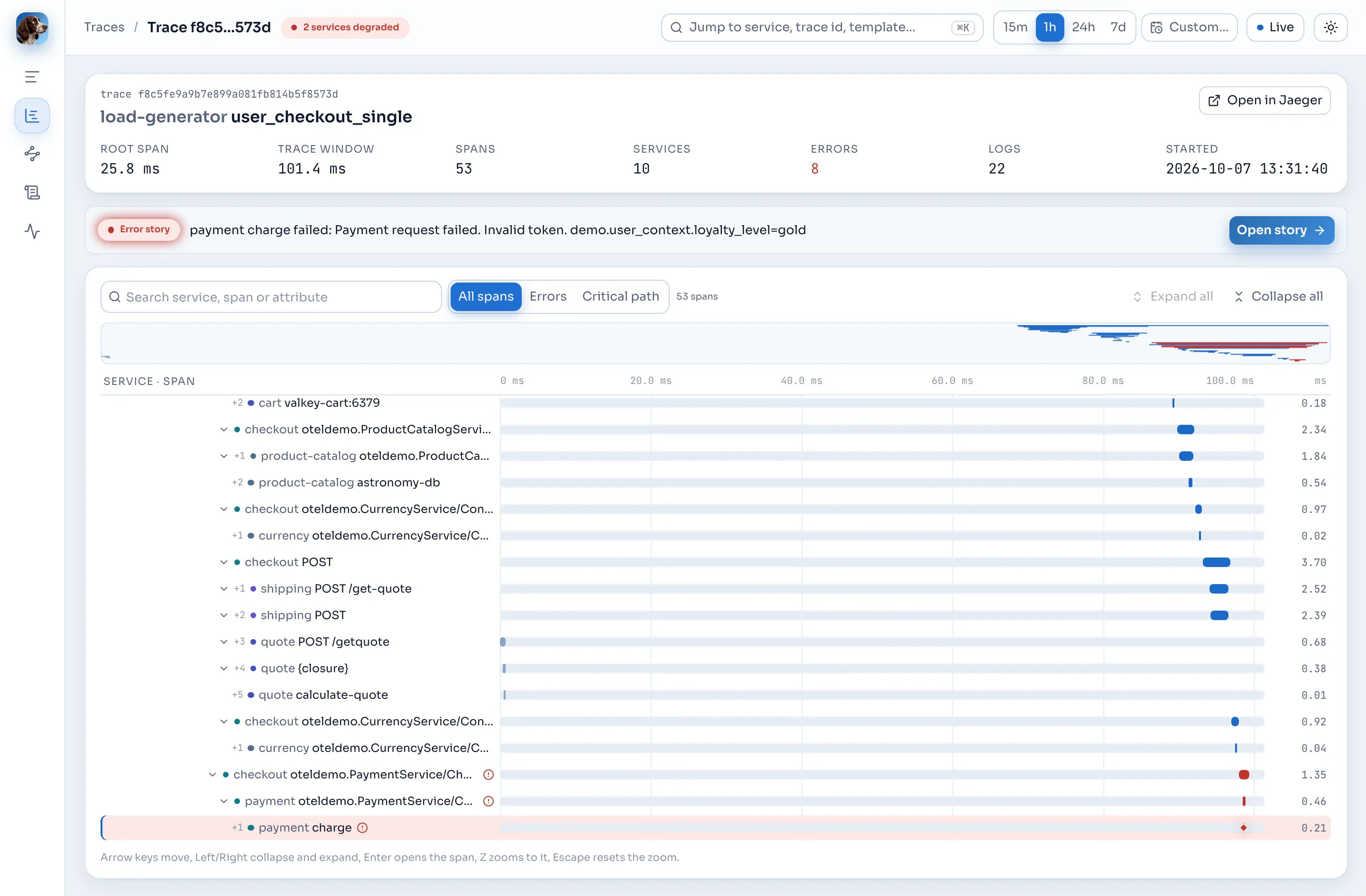

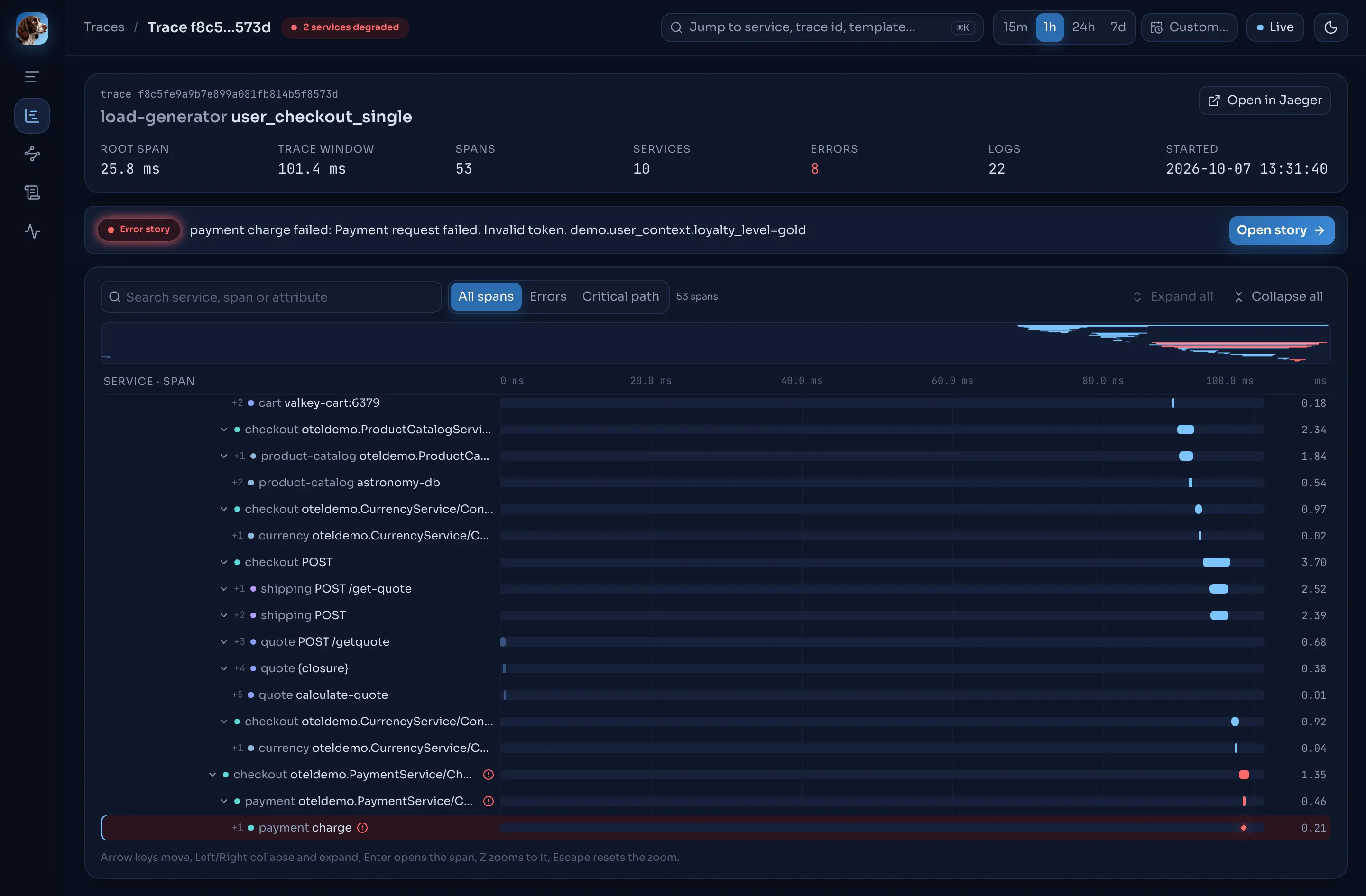

The trace view shows one trace in full: every span on the waterfall, with the span drawer. Open it from a dot or row in the explorer, Open trace on a story, a hit on a log template page, or the command palette (paste a trace id).

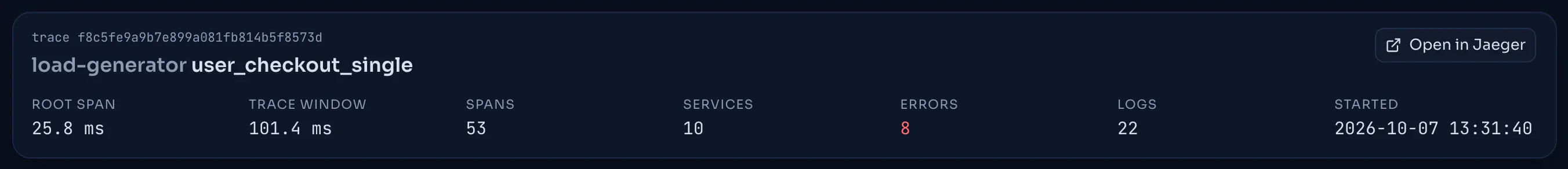

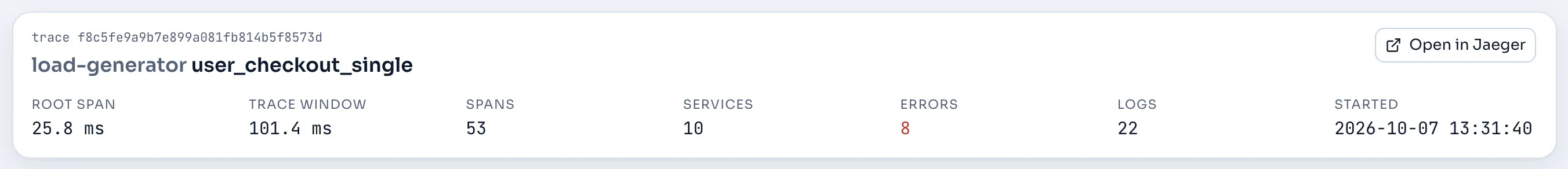

The header shows the trace id and the root span (service and name), and Open in Jaeger when a Jaeger URL is configured. Below them: Root span duration, Trace window (from the first span’s start to the last span’s end), Spans, Services, Errors (red when there are any), Logs and Started.

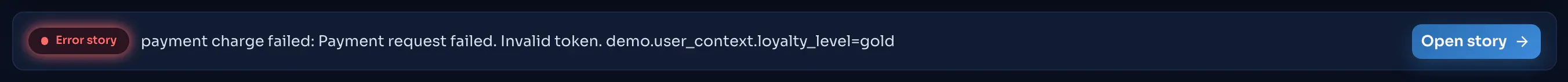

Story banner

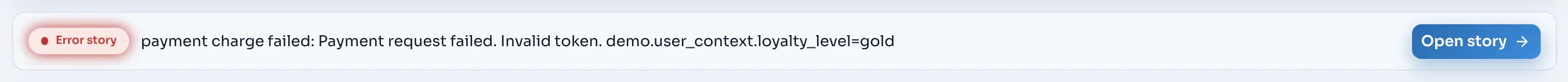

When Tayga built a story for the trace, a banner shows its kind and summary, with Open story. The waterfall then uses the story’s critical path and marks its root cause. For a trace without a story, Tayga computes the critical path from the spans, and no root cause is marked.

Waterfall and span drawer

The waterfall and the span drawer work as on the story page: search, the All spans, Errors and Critical path filters, the trace overview, expand and collapse, and the keyboard. See Story detail: Waterfall. The trace’s logs are in each span’s Logs tab in the drawer.

When the trace window is more than five times longer than the root span (for example long-lived streams that share the trace id), the waterfall opens zoomed to the root request and says “Showing the root request”. Reset zoom shows the whole window.

Trace not found

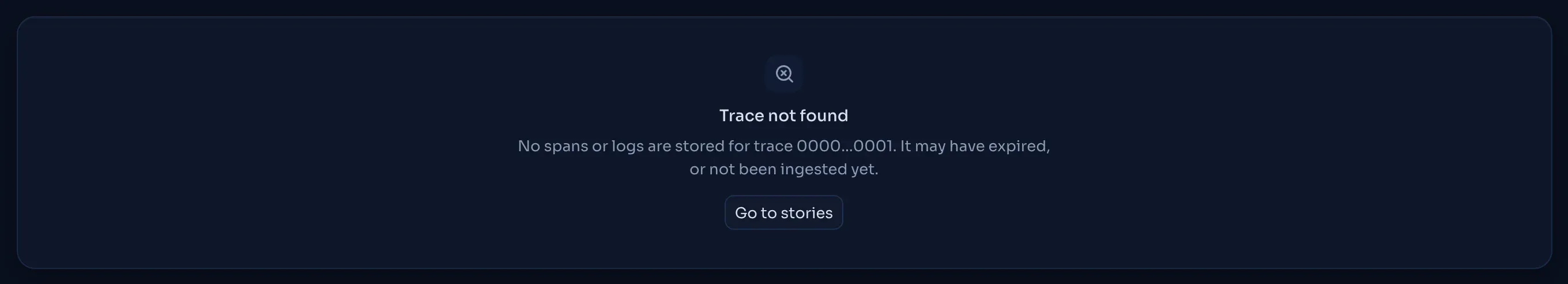

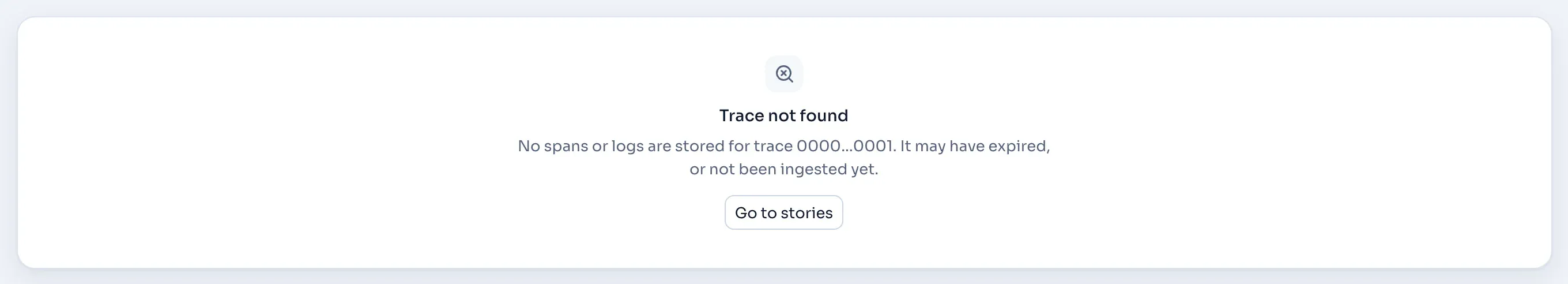

A trace id with no stored spans or logs.

“Trace not found” means no spans or logs are stored for that id: it has expired, or has not been ingested yet. Traces close after a short quiet period, so a trace from the last few seconds may not be there yet.

URL parameters

Explorer (/traces):

Parameter	Values	Meaning
`service`	a service name	Service filter.
`touched`	`1`	Match the service anywhere in the trace (only with `service`). Absent: as endpoint.
`endpoint`	an endpoint name	Endpoint filter.
`min_ms`, `max_ms`	whole milliseconds, up to 86,400,000	Duration bounds. A `max_ms` below `min_ms` is ignored.
`errors`	`1`	Errors only.
`log`	`1`	Log scale on the chart.
`sel`	`t0_t1_d0_d1`	The chart selection: start and end time (Unix ms), lowest and highest duration (ms).
`since`, `until`	see Time range	The time range.

Trace view (/traces/<trace id>): span (the open span), q (the waterfall search) and only (errors or critical), as on the story page.

Tips

To find the slowest requests of an endpoint, pick the endpoint, switch to Log, and drag a rectangle around the top of the chart.
A band of red dots at one moment usually means one incident; select it and look at the Story column to see which story groups it produced.
The service drawer on the Service map has Open <service> traces, which opens this page filtered to that service.
