Demo with the OpenTelemetry demo

The OpenTelemetry demo is a microservice shop (checkout, payment, shipping, ad, product catalog and more) with a load generator that keeps buying things. Its services carry feature flags that inject failures. The Tayga repository vendors it as a git submodule, pinned to 3.1.0, and runs Tayga next to it: the demo’s Collector forwards every trace and log to Tayga as well as to the demo’s own backends.

This is the quickest way to see what Tayga is for. Plan on about 10 minutes from clone to your first injected failure as a story, plus the time of the first image build.

What you need

• Docker with the Compose v2 plugin, git and make.
• Memory. The demo is large. On 2026-10-07 the running stack (the demo plus Tayga, 36 containers) used 8.9 GiB of memory by docker stats, ClickHouse 2.9 GiB of it, on Docker Desktop with 14 CPUs and 31.5 GiB. Give Docker comfortably more than that.
• Disk. Tayga keeps raw spans and logs for 3 days and its Redpanda topics for 24 hours; on the demo, tayga.signals held 7.4 GB at 24-hour retention. See Retention and disk.
• Optional: a Rust toolchain (1.98 or newer) for make flag and make e2e, which run the tayga-devtools CLI with Cargo. Without Rust, flip flags in the demo’s own flag page instead (step 4).

Run it

1. Clone with the submodule.

   git clone --recurse-submodules https://github.com/softberries/tayga.git
   cd tayga

   make up also runs git submodule update --init, so a clone without --recurse-submodules works too.

2. Start everything.

   make up

   It initialises the submodule, builds the tayga:dev image (the web app is built inside it, so no Node is needed on the host), and starts the demo and Tayga together. The first build takes several minutes. tayga-migrate creates the ClickHouse schema first; the other Tayga services wait for it.

   Check that the API is up; it reads healthy once it serves:

   docker inspect -f '{{.State.Health.Status}}' tayga-api

3. Open the two apps.

   What	Where
   Tayga	http://localhost:8090
   The demo shop	http://localhost:8080
   The demo’s flag page	http://localhost:8080/feature
   The demo’s Jaeger (Tayga’s “Open in Jaeger” links go here)	http://localhost:8080/jaeger/ui

   The load generator starts at once, so traces and the service map fill as soon as the first traces close. Slow stories need a baseline first: an endpoint is judged against its own p99 of the last hour.

4. Inject a failure. Make every payment fail:

   make flag (Rust)

   make flag NAME=paymentFailure VARIANT=100%

   It sets the flag’s default variant in deploy/flagd/demo.flagd.json, the file the demo’s flagd reads. The first run compiles tayga-devtools.

   Demo flag page (no Rust)

   Open http://localhost:8080/feature, set the default variant of paymentFailure to 100%. The page edits the same deploy/flagd/demo.flagd.json.

5. Watch it become a story. On Stories (keep the time range at 1h and Live on), a new group appears whose summary starts payment charge failed: Payment request failed. Invalid token. In our end-to-end runs the first matching stories arrived 55 to 125 seconds after the flip (single runs, not a guarantee). The endpoint is part of the fingerprint, so you will see one group per calling endpoint, such as load-generator user_checkout_single and user_checkout_multi.

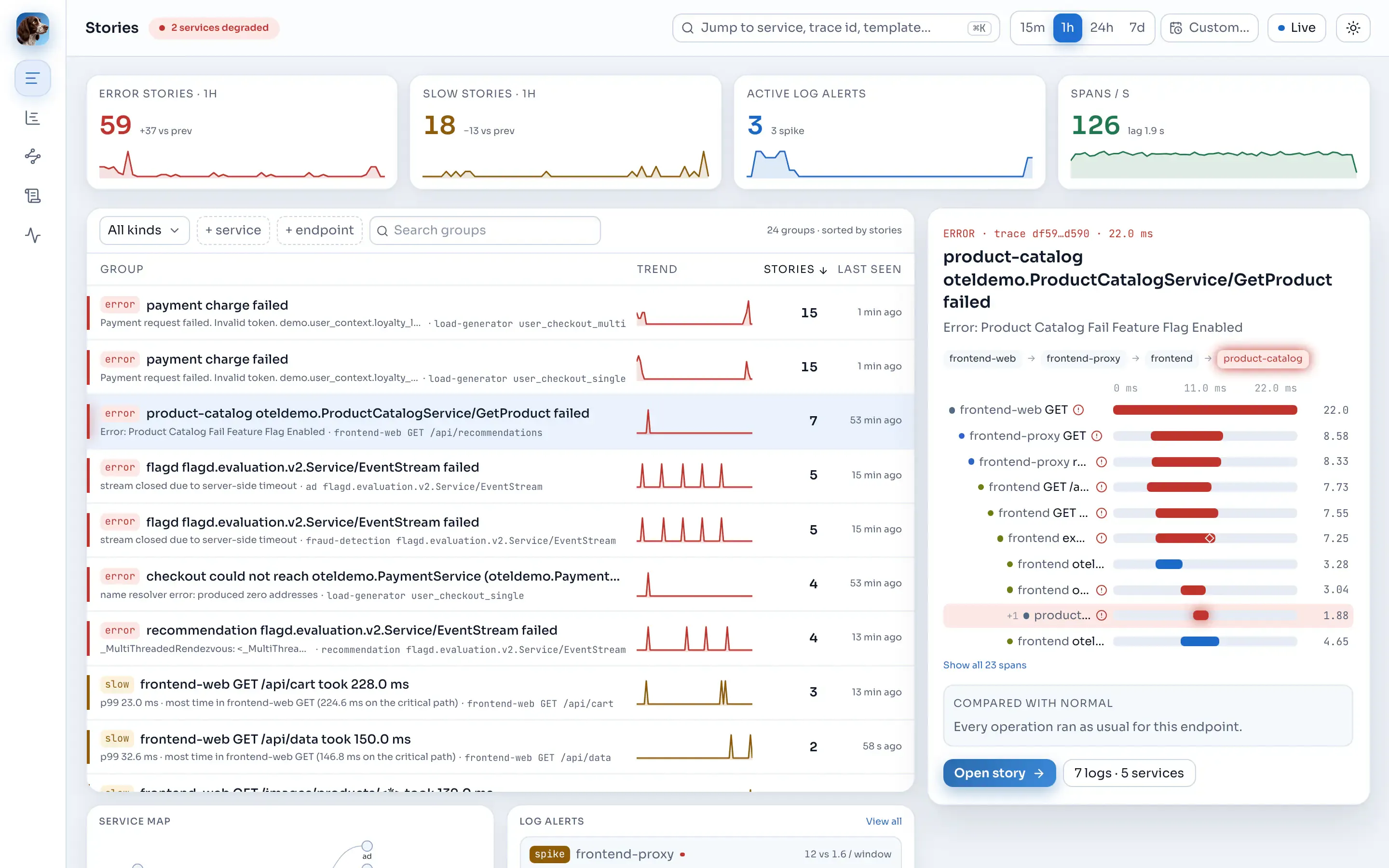

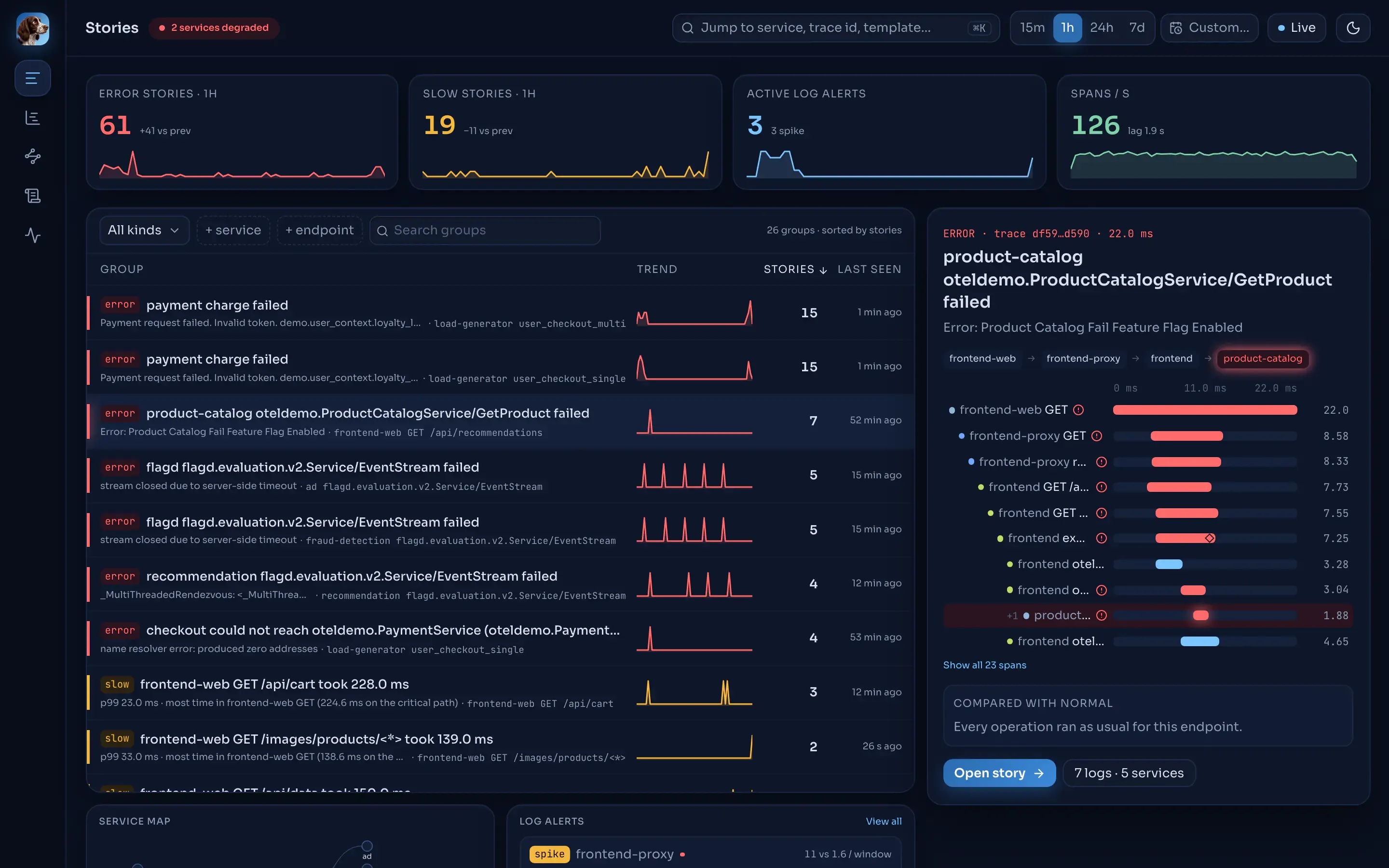

   Stories on the demo stack with paymentFailure on: the two “payment charge failed” groups at the top, one per calling endpoint. The inspector on the right shows the selected group's sample story (here a product-catalog failure).

   Stories on the demo stack with paymentFailure on: the two “payment charge failed” groups at the top, one per calling endpoint. The inspector on the right shows the selected group's sample story (here a product-catalog failure).



6. Open the story. Select the group’s sample story. The root-cause card names payment and its charge span, with the path through checkout; the waterfall marks the failing chain and the critical path; the logs below are the request’s own, with the Payment request failed error first.

   Select to see the whole page

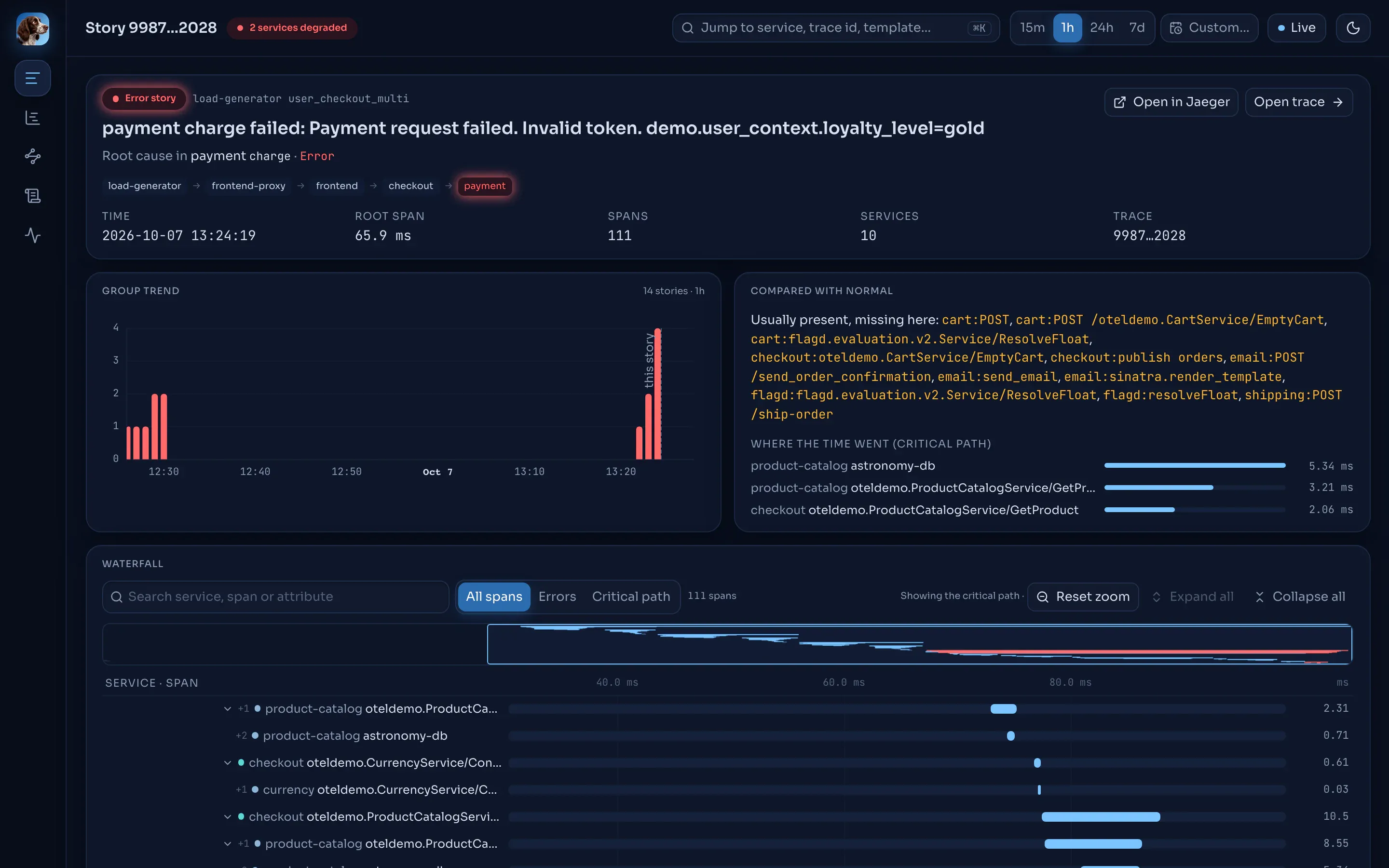

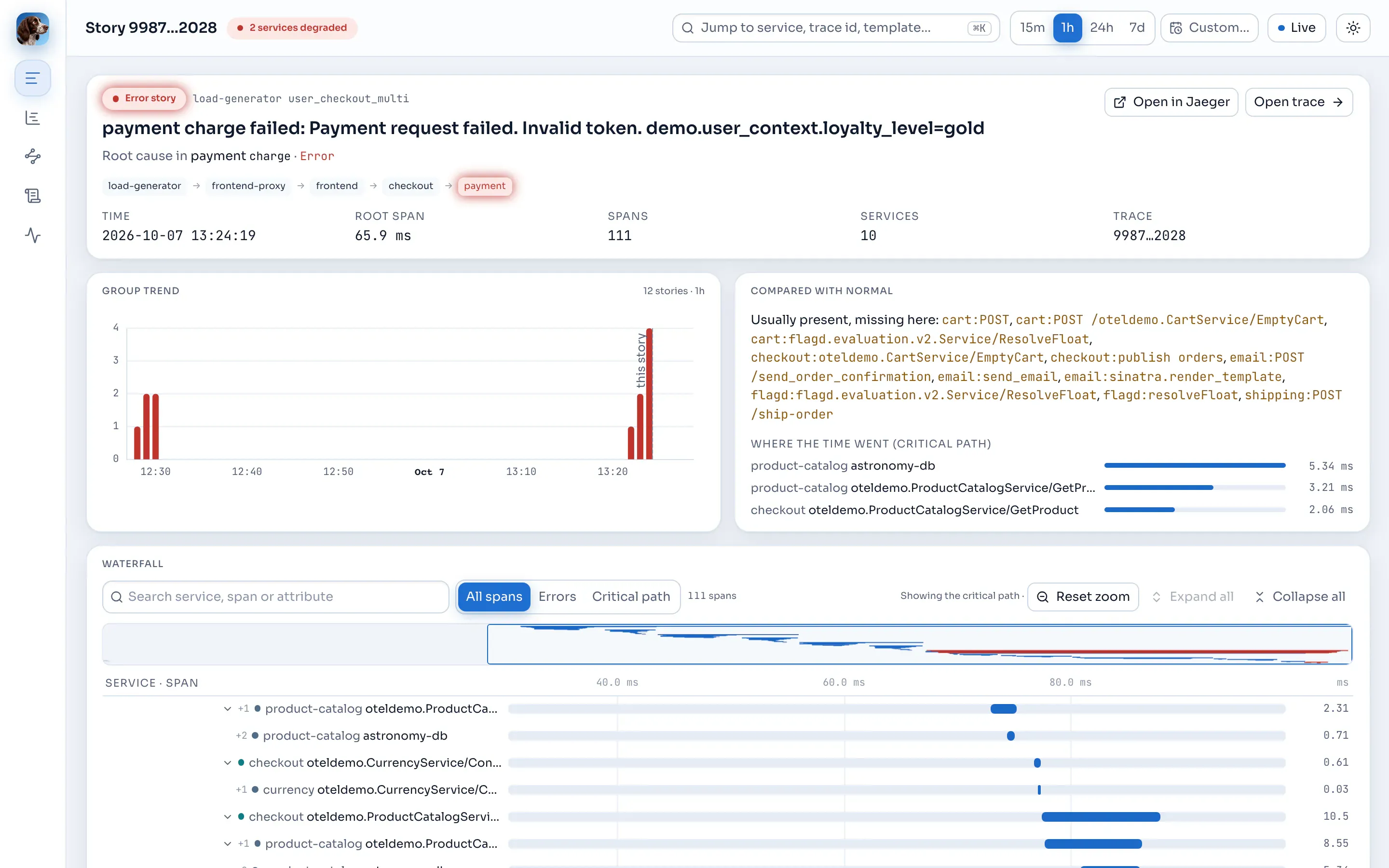

   A paymentFailure story: root cause, request path, group trend, comparison with normal, waterfall and logs.

   A paymentFailure story: root cause, request path, group trend, comparison with normal, waterfall and logs.



7. Look at the service map. Press g then m. checkout and payment turn red with their error ratio, and the call between them is drawn dashed as failing. Click payment for its rate, errors and p99, and its recent stories.



   The service map while payments fail: checkout and payment are degraded, and the failing call is dashed.

   The service map while payments fail: checkout and payment are degraded, and the failing call is dashed.



8. Wait for the log alert. The failing payments log the same error again and again, so its log template spikes. Detection runs every 60 seconds over a 5-minute window, so the alert takes a few minutes: 175 to 291 seconds in our runs. Open Logs → Alerts (g then l). Each alert links example traces to their stories. With a notifier target set, it would also go to a webhook or Slack.



   A spike alert: the count in the window against the baseline, and example traces linked to their stories. Here the demo's proxy logged the failing checkouts.

   A spike alert: the count in the window against the baseline, and example traces linked to their stories. Here the demo's proxy logged the failing checkouts.



9. Put the flags back.

   make flags-reset

   It copies the demo’s default flag file over deploy/flagd/demo.flagd.json, which turns every injected failure off. The group stops growing, its trend line flattens, and the alert stops being active about 10 minutes after the last spike.

Other failures to try

Each flag below is one of the demo’s own. Tayga’s end-to-end tests flip the same flags and check the outcome against the API; the times are from single runs between 2026-10-04 and 2026-10-06, not guarantees.

Flag and variant	What Tayga shows	First stories after
paymentFailure 100% (also 10% to 90%)	Error stories blaming payment’s charge span, one group per calling endpoint; later a spike alert on the payment error template	55–125 s; alert 175–291 s
paymentUnreachable on	Error stories whose root cause is checkout’s client span: “checkout could not reach oteldemo.PaymentService”	50–80 s
productCatalogFailure on	Error stories in product-catalog: “Product Catalog Fail Feature Flag Enabled”	25 s
adFailure on	GetAds failed stories in ad, one group per calling endpoint. The flag hits about one request in ten, so it is slower to show	75–85 s
intlShippingSlowdown 5sec	A slow story blaming shipping, with the delay on the critical path. Only international orders are delayed, and they are rare in the load generator’s traffic; the end-to-end test places its own. It also needs a clean baseline: an hour without earlier slowdown runs	40–160 s when it passed

make flag NAME=paymentUnreachable VARIANT=on
make flags-reset

One flag at a time

Two failures at once make two sets of stories, which is fine, but a single flag makes it easier to see which change caused what. Run make flags-reset between flags.

Run the end-to-end tests

The same scenarios run as tests against the live stack. They take the flags one at a time and reset them before they start; full runs took 8 to 16 minutes.

make e2e

Details of each scenario and its timeouts are in From source.

Grafana and Prometheus (optional)

Tayga needs neither: its own Pipeline page records the services’ metrics. To add Tayga’s Grafana dashboards and a Prometheus next to the demo:

make up-extras

Grafana is then at http://localhost:3001 (anonymous Viewer access; the admin password is admin) and Prometheus at http://localhost:19090, and the service map gains an “Open in Grafana” link. See Metrics and Grafana.

Ports

Tayga’s own published ports bind to 127.0.0.1:

Port	Service
8090	tayga-api: web app, JSON API, /healthz, /metrics
14318	tayga-ingest OTLP/HTTP (container port 4318), used by tayga-devtools emit-log
18123	ClickHouse HTTP (container port 8123)
19092	Redpanda Kafka API (external listener)
3001, 19090	Grafana and Prometheus, only after make up-extras
8080	The demo’s frontend proxy: the shop, /feature, /jaeger/ui (published by the demo)

The demo's ports are open to your network

The upstream demo publishes 8080 (frontend proxy), 9090 (its Prometheus), 10000 (Envoy admin) and 26 other container ports (on ephemeral host ports, counted on demo 3.1.0) on all interfaces. Run the demo only on a trusted network, or firewall those ports. Tayga’s own ports are not affected.

What Tayga changes in the demo

The demo itself is not edited; Tayga’s Compose file (deploy/compose.tayga.yaml) layers a few changes on top of it:

• The Collector loads deploy/otelcol-config-tayga.yml last, which adds the otlp_grpc/tayga exporter to the traces and logs pipelines next to the demo’s own exporters.
• The flag file is deploy/flagd/demo.flagd.json, mounted into flagd and its UI, so make flag and make flags-reset can change it.
• The load generator skips its ask_agent task. It calls an agent service that only exists in the demo’s compose.agent.yaml, which the Makefile does not include, so every call failed and showed up as noise. A small locustfile, deploy/locust/tayga_locustfile.py, imports the demo’s own and removes that task.
• Memory limits of demo services that ran at their caps during long sessions are raised: checkout and product-catalog 20M to 64M, ad and fraud-detection 300M to 512M, accounting 160M to 320M, kafka 620M to 1G, opensearch 1G to 1.5G, the demo’s grafana 175M to 256M, and load-generator to 2G.

Day to day

make ps                        # status of every container
make logs SERVICE=tayga-api    # follow one service's logs
LOGMINER_REPLICAS=2 make up    # rescale the logminer
make down                      # stop and remove the containers; the data volumes stay

make up again after git pull rebuilds the image and migrates the schema before the services restart. If the demo misbehaves (every checkout failing for hours, say), Troubleshooting has what we have seen and how it was fixed.

Next steps

Tour of the appEvery page of the web app, with what each part means.

Error storiesHow a failing trace becomes a story, and how stories are grouped.

Install for realDocker Compose for one host, without the demo.

Connect your CollectorSend your own services' traces and logs.
