Sources

A source is a service that sends events to ramzes: one of your own, or a tool such as Alertmanager or GitHub. Each source has its own key, so you can tell senders apart and cut one off without touching the others. This page covers the screen; what to configure on the sending side is in the Sending events pages.

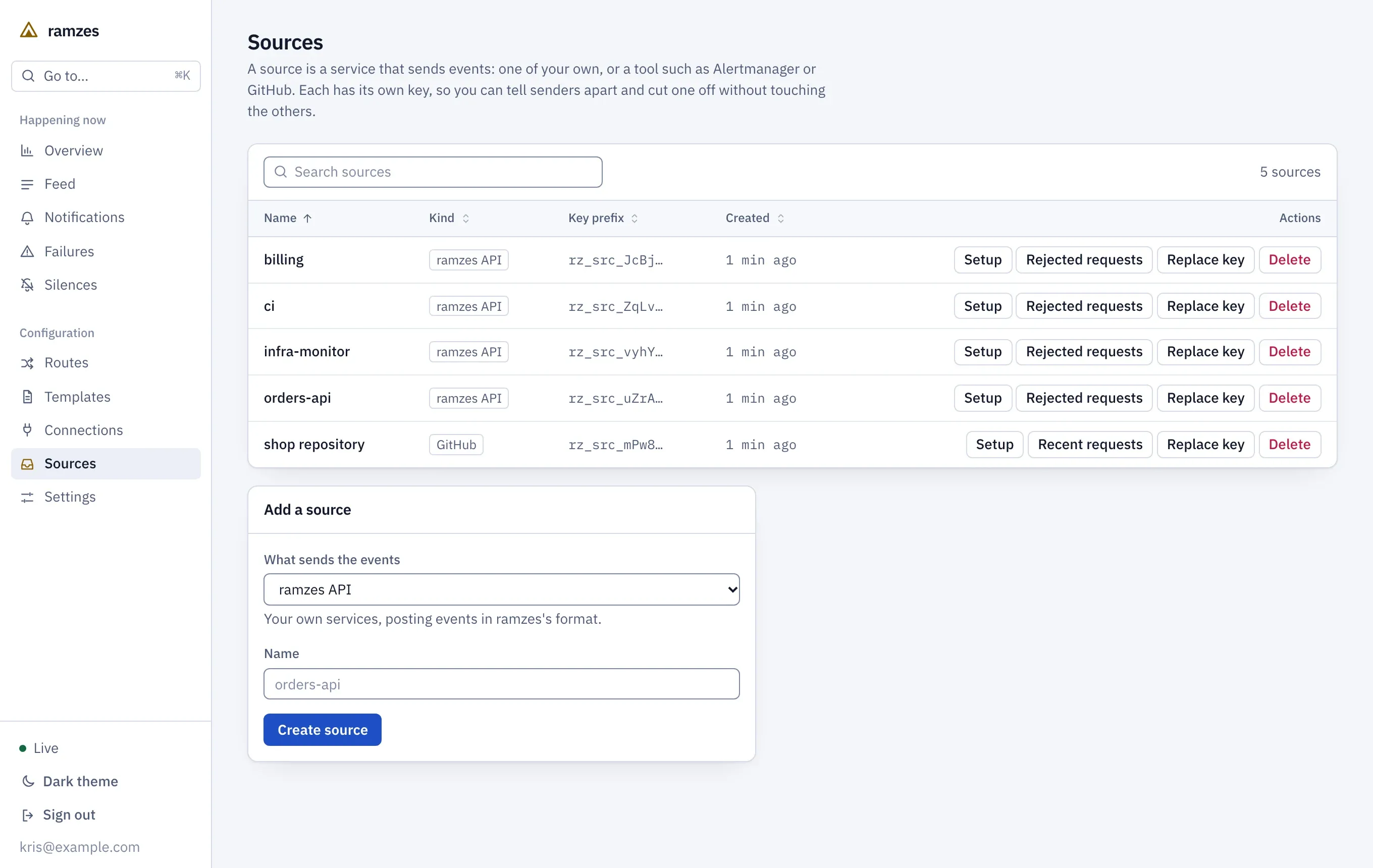

Five sources: four of the kind ramzes API and one GitHub source, each with its key prefix and actions. Below, the form that adds a source.

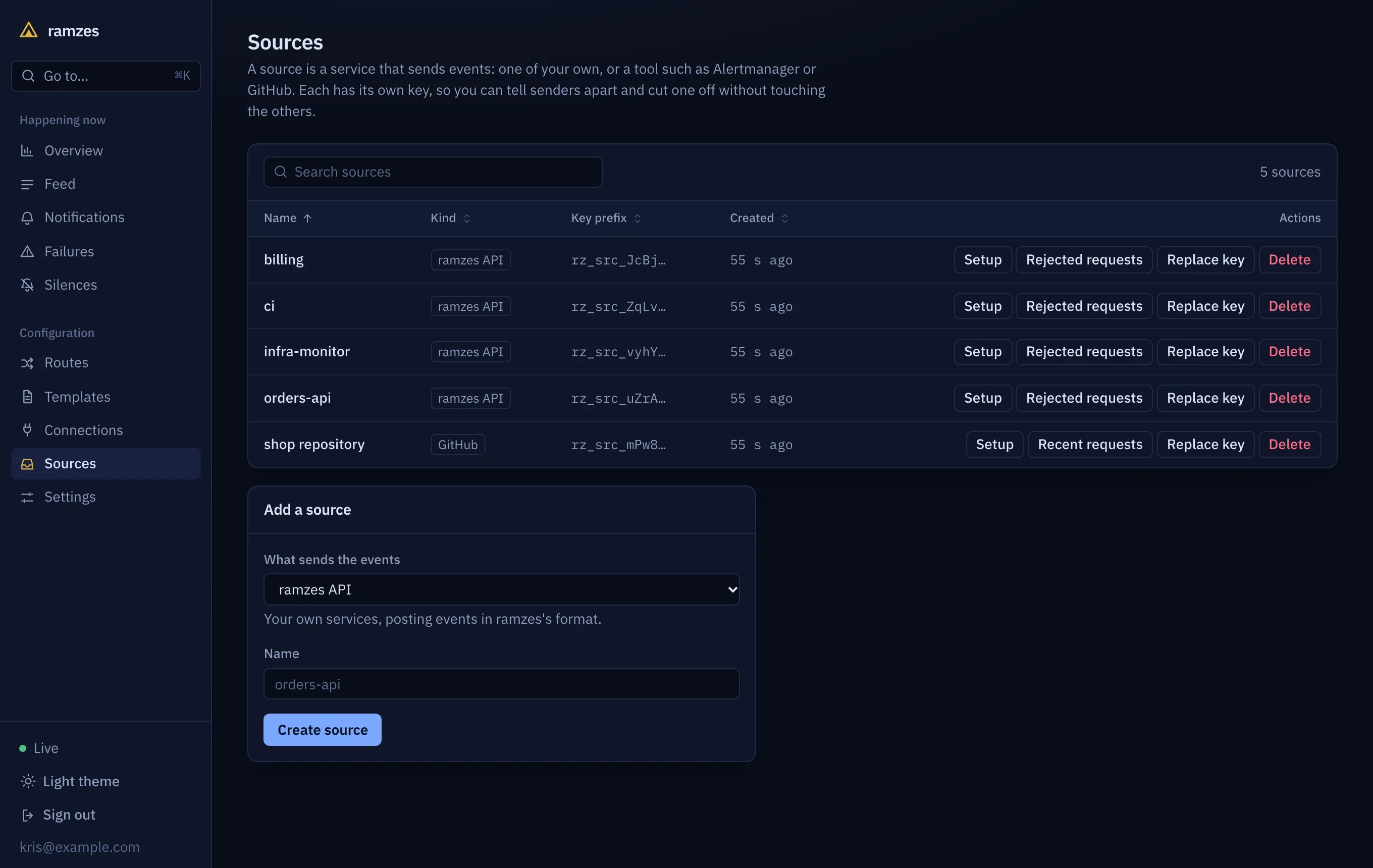

Five sources: four of the kind ramzes API and one GitHub source, each with its key prefix and actions. Below, the form that adds a source.

Adding a source

1. In Add a source, choose What sends the events. A line under the menu describes the kind.

   Kind	Setup page
   ramzes API	The events API
   Alertmanager	Alertmanager
   Grafana	Grafana
   GitHub	GitHub
   GitLab	GitLab
   Sentry	Sentry
   Any JSON	Any JSON webhook

2. Give it a Name, up to 100 characters, such as orders-api. The name is what the Feed and the route editor show.

3. For Sentry, paste the Secret from Sentry. Sentry generates this secret itself and signs each request with it. It must be 16 to 200 characters.

4. Press Create source.

A card then appears at the top of the page, titled with the source’s name and “is ready to receive”. It holds:

• The key, with a Copy button. Copy the key now. It cannot be shown again: ramzes shows it only at this moment. For a source that uses the sender’s own secret there is no key to copy.
• For every kind but ramzes API, the address to give the sender.
• Setup instructions with the address and the key already filled in. For a ramzes API source this is a curl command that sends a first event.

Press I have saved the key to close the card.

The list

Column	What it shows
Name	The source’s name.
Kind	What sends the events.
Key prefix	The first characters of the key, so you can tell which key a sender holds. Generated keys start with rz_src_.
Created	How long ago it was added.
Actions	Setup, Rejected requests or Recent requests, Mapping (Any JSON only), Replace key and Delete.

The search box looks in the name, kind and key prefix.

Setup, the requests button and Mapping each open a panel under the table; press the same button again, or the close button of the panel, to hide it.

Setup

Shows the address to give the sender and the setup instructions again. The key is replaced by the placeholder <the source key>, because it can no longer be read. If the key is lost, replace it.

Rejected requests and recent requests

ramzes keeps the last 20 recorded requests of each source, newest first.

• For a ramzes API source the button reads Rejected requests, and only requests ramzes refused are recorded.
• For every other kind it reads Recent requests, and every request that passed verification is recorded, tagged accepted or rejected. A request with a wrong key or signature is not kept.

Each entry shows the time, the reason for a rejection, the request’s headers behind a “N headers” toggle, and the body. This is the first place to look when a sender says it is sending and nothing arrives in the Feed. See also Troubleshooting.

Mapping

An Any JSON source turns the sender’s JSON into events with a mapping that you write. The panel has two halves.

• On the left, the Mapping as YAML, and Save mapping. Each field is an expression over the request: payload is its JSON body, headers its headers by lower-case name.
• On the right, Try it on: choose one of the source’s recorded requests, or A body I paste here. Underneath, the preview shows The event it makes (or the events, when one request makes several) with title, topic, severity, status, body and labels. It updates shortly after you stop typing. An error in the mapping or the body is shown in red. A request that would be accepted without producing an event says so.

The preview does not save anything and does not create events. The mapping format is documented in Source mappings.

Replacing a key

Replace key asks for confirmation. The current key stops working immediately, and the service is rejected until it uses the new one.

• Leave the field empty and ramzes generates a new key, which is shown once in the same card as after creating a source.
• If the sender generates its own secret, type it into the field. For a Sentry source this is required.

Deleting a source

Delete asks for confirmation. The key stops working. Events the source already sent are kept; in the Feed and on event pages they are then shown as coming from “a deleted source”.

The built-in source

Once ramzes has reported an event of its own, such as a connection being paused, the list also holds a source named ramzes. It is where those events come from. Nothing outside can send to it, it has no actions, and it cannot be changed or deleted. Route its events with the topic ramzes.*.
