Feed and event journey
The Feed lists every event ramzes received and what became of it. A row opens the event’s own page, which shows its journey from receipt to the answer of each service it was sent to.
The feed
Section titled “The feed”The feed is the page the app opens on. Its columns:
| Column | What it shows |
|---|---|
| Received | Local time with seconds. An event from another day also carries its date. |
| Severity | debug, info, warning, error or critical. |
| Event | The event’s title. It is greyed for an event with the status resolved. |
| Topic | The event’s topic. |
| Source | The name of the source that sent it. |
| Sent to | The targets it was sent to, separated by commas. |
| Outcome | One word for what became of it; see below. |
On narrower screens the table drops columns, in this order: Sent to, Source, then Topic and Severity.
Outcomes
Section titled “Outcomes”| Outcome | Meaning |
|---|---|
| pending | The event has not been routed yet, or a message for it is still being sent or retried. |
| waiting | A notification for it is collecting events or being held, so something is still to be sent. |
| delivered | Every delivery for it arrived. |
| not sent | A route matched, and the message was deliberately not sent, for example because a silence covers the event. |
| failed | At least one delivery failed for good. This wins over everything else. |
| no route | The event was routed and no route matched. |
Why a message waits or is not sent is covered in Noise control.
Filters
Section titled “Filters”The bar above the table filters the list. Filters combine: an event must pass all of them.
| Filter | What it matches |
|---|---|
| Find in title | Events whose title contains the text, in any letter case. |
| Topic | The exact topic, or a pattern in which * stands for any run of characters, as in orders.*. |
| Label | One label, written key=value, as in env=prod. The value must match exactly. |
| Any source | Events from one source. |
| Any severity | A minimum severity: “info and above” up to “critical and above”. |
| Any outcome | Pending, Waiting, Delivered, Not sent, Failed or No route. |
| Any time | Last 15 minutes, Last hour, Last 24 hours or Last 7 days. |
The three text fields apply when you press Enter or leave the field. The time range is counted back
from the moment you choose it; it does not move forward while the page stays open.
Filters live in the page address, so a filtered feed can be bookmarked or shared. A change of filter returns to the first page. When nothing matches, the table says “No event matches these filters.” with a Clear filters link.
Sorting and paging
Section titled “Sorting and paging”Click Received, Severity, Event or Topic to sort by it; click again to reverse. Received and Severity start with the newest and the most severe first, Event and Topic with A first. Events that are equal in the sorted column are ordered by arrival. Source, Sent to and Outcome cannot be sorted.
Under the table are the range shown (“1–50 of 341”), Per page (25, 50 or 100; 50 by default) and buttons for the first, previous, next and last page. Sorting is done by the server over all matching events, not only the page in view.
Live updates and pause
Section titled “Live updates and pause”The feed reloads when an event is routed or a delivery finishes. On the first page of the default order, a row that just arrived is lit for a moment.
Pause in the top right freezes the list so that rows stop moving while you read. While paused, a button Show N new events appears when more events match than when you paused. That button or Resume brings the list up to date.
Keyboard
Section titled “Keyboard”| Key | What it does |
|---|---|
j |
Selects the next row. With nothing selected, the first one. |
k |
Selects the previous row. |
Enter |
Opens the selected event. |
The keys do nothing while the cursor is in a filter field or menu. A click anywhere on a row opens the event too.

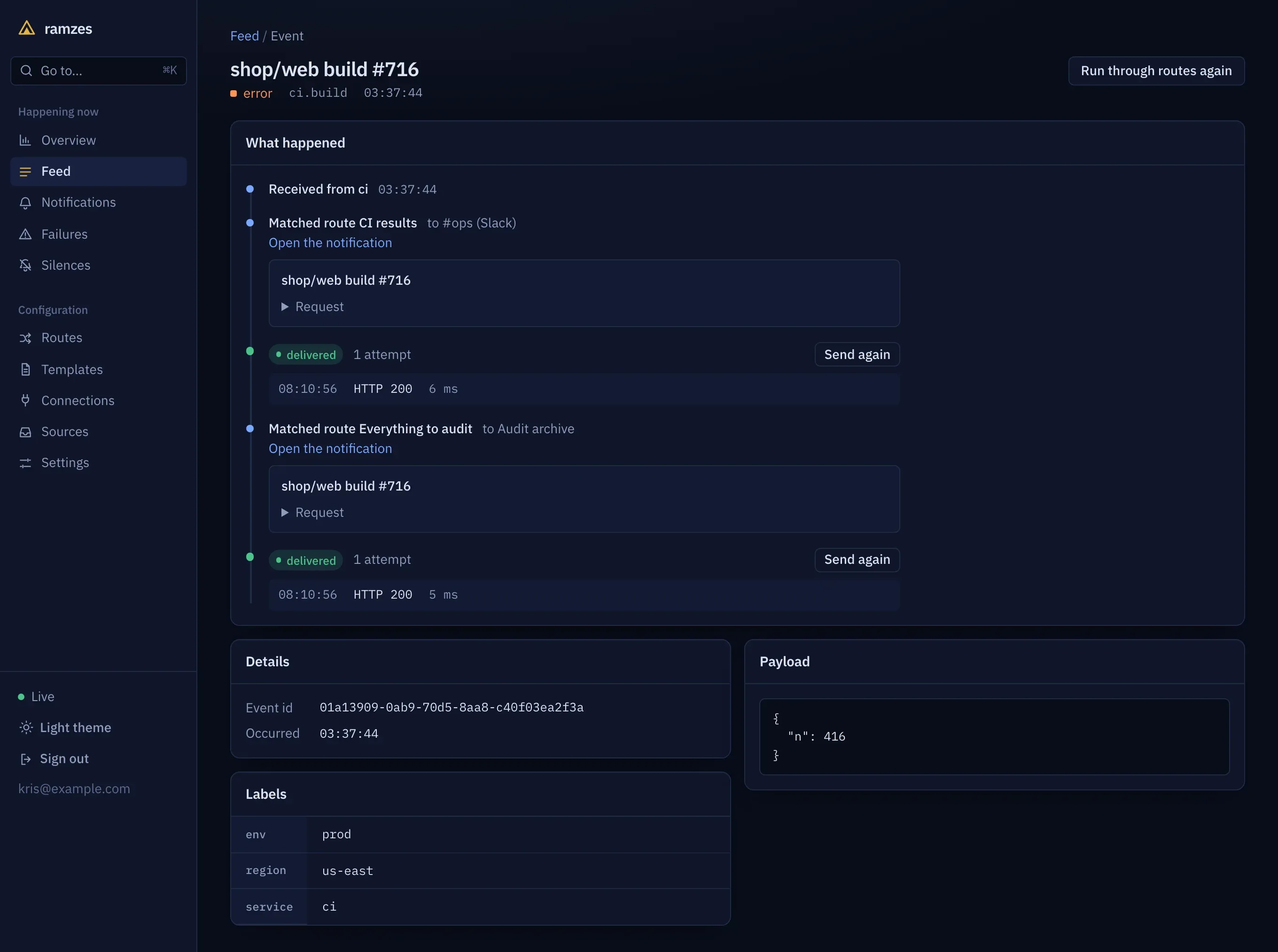

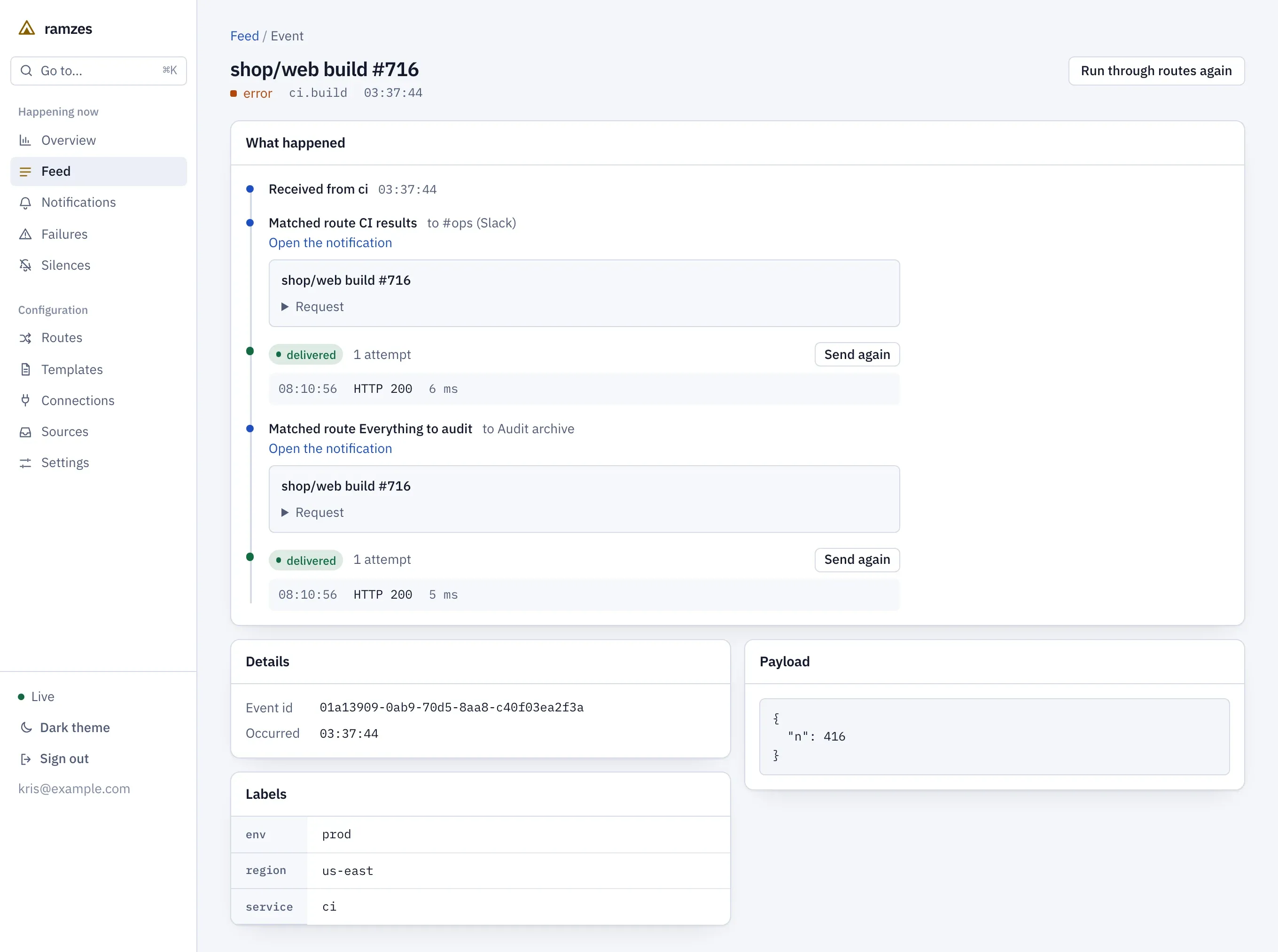

The event’s journey
Section titled “The event’s journey”The header shows the title, severity, topic, a “resolved” tag when the event has that status, and the time it was received.
What happened
Section titled “What happened”The What happened card is a path read from top to bottom.
- Received from names the source and the time.
- Then one of:
- Waiting to be routed, for an event the router has not reached yet.
- No route matched, with a link to Routes.
- One Matched route entry for each route and target it matched: the route’s name, then the connection and destination it went to.
Each Matched route entry can carry:
- A note when the message was not sent straight away: Not sent, Held until a time, or Collecting events to send as one message, followed by the reason where there is one.
- The event’s part in the notification, when it did not open it: “Counted as a duplicate of an earlier event.”, “Joined a group of N events.” or “Resolved this notification.”
- A “replayed” tag when the entry comes from running the event through the routes again.
- Open the notification, a link to the notification’s page.
- The message as it would be worded and sent now: its title and body, and behind Request the HTTP request the connector makes, with secrets masked. If the route’s template failed, a warning says so. If the request cannot be shown, the reason is given, for example that the connection was deleted.
Under each entry come its deliveries. A delivery shows its state (pending, sending, delivered, failed or gave up), the number of attempts, and one line per attempt: the time, the HTTP status or “no answer”, how long it took, and the error detail. A delivery that is waiting for a retry shows “Next attempt in” and a countdown. A delivery sent by an escalation step is labelled “Step N to” and the connection. See Delivery and retries for the retry schedule and Escalation and acknowledgement for steps.
Sending again
Section titled “Sending again”There are two different buttons.
- Send again, on a delivery that has finished, queues a new delivery of the same notification to the same connection and destination. The earlier delivery and its attempts stay in the path.
- Run through routes again, in the header, evaluates the event against the routes as they are now and queues a delivery for every target that matches. It skips noise control: the message is sent whatever deduplication, grouping, quiet hours, rate limits and silences would say. Afterwards the page reports “Queued N deliveries.” or “No route matches this event.”
Use the second after adding or widening a route for an event that had no route.
Event content
Section titled “Event content”Below the path:
- Details: the event id, when it occurred, and its dedup key if it has one.
- Body, when the event has one.
- Labels, as a table of keys and values, or “This event has no labels.”
- Payload, the event’s JSON payload, or “This event was sent without a payload.”
The fields themselves are described in Events.
An event that is gone
Section titled “An event that is gone”For an id that does not exist the page says “This event does not exist” and that it may have been removed after its retention period. Retention is set under Settings; see Retention.
