Routes and the tester

The Routes page holds the ordered list of routes, the editor for one route, and a tester that shows what the routes would do with an event. What a route is and how matching works is covered in Routes; this page is about the screen.

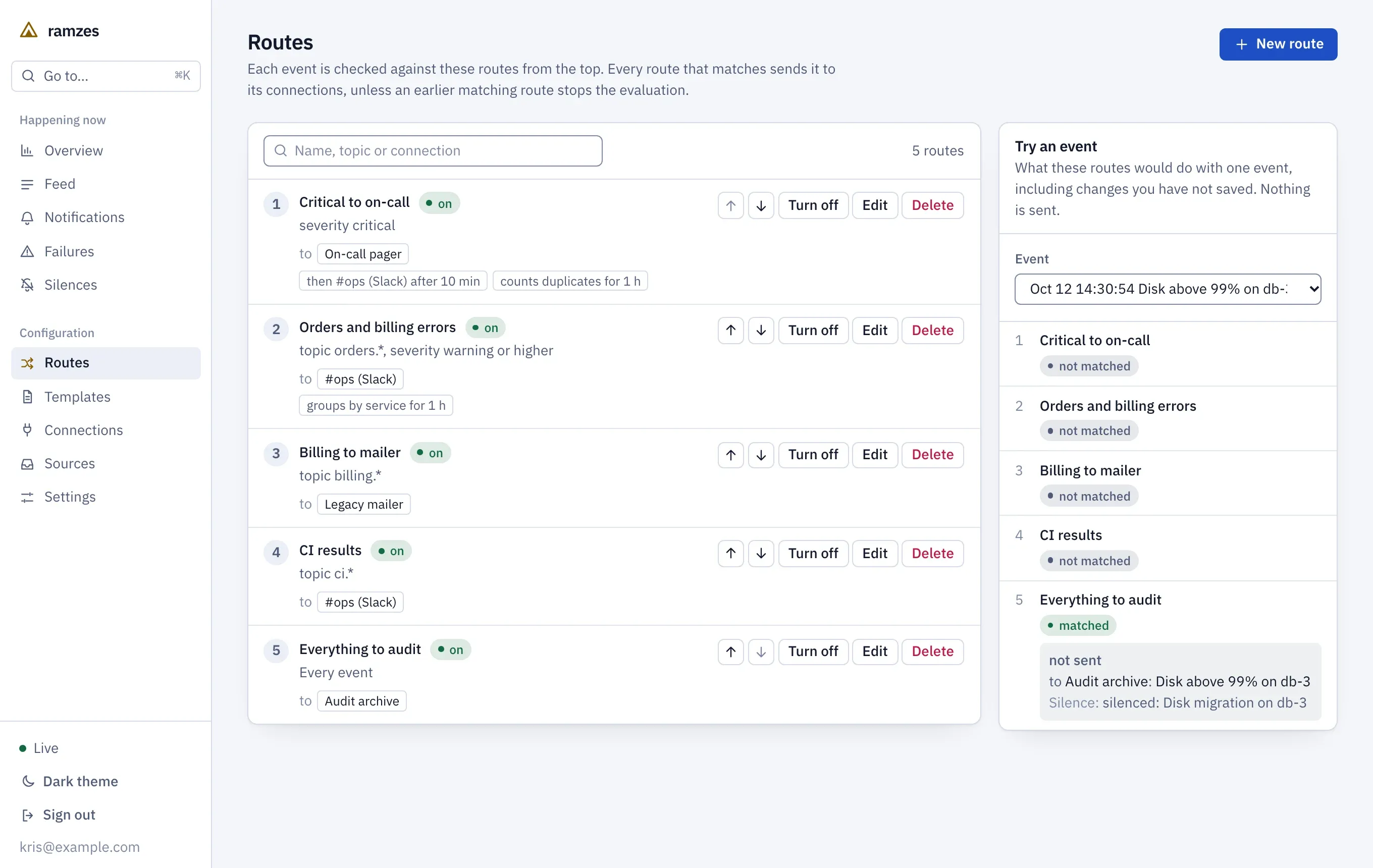

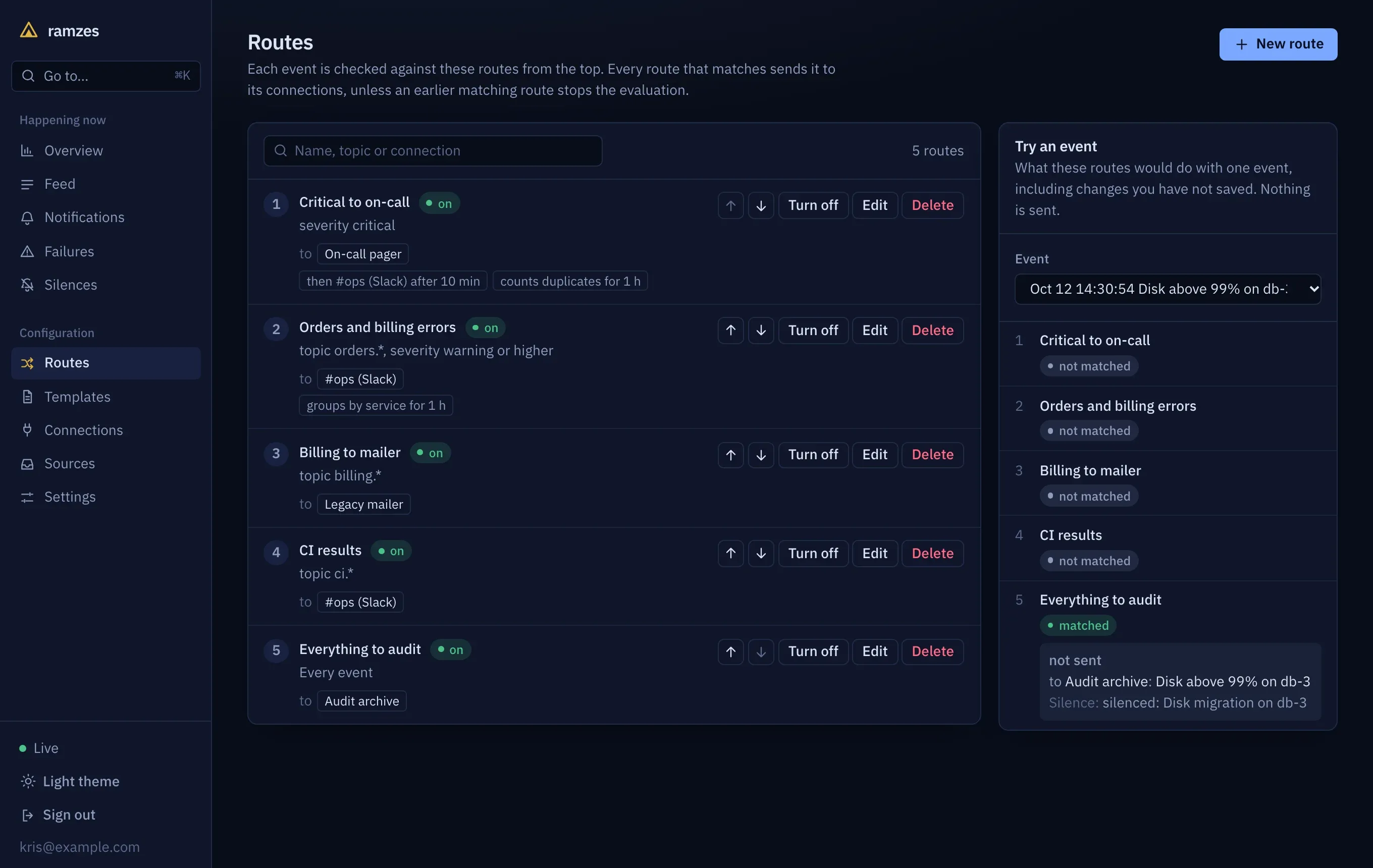

Five routes in evaluation order on the left; on the right the tester, showing that the chosen event matches only the last route and would not be sent because a silence covers it.

The list

Each event is checked against the routes from the top. Every route that matches sends it, unless an earlier matching route stops the evaluation. So the order of this list matters, and the number in the circle is a route’s place in it.

A row shows:

The route’s name, an on or off badge, and a stops here tag when routes below it are skipped once it matches.
Its conditions in words, for example “topic orders.*, severity warning or higher”, or “Every event” for a route without conditions.
After “to”, one tag per target: the connection, the destination in brackets when one is set, and “worded by” a template name when the target uses one. A connection that no longer exists is shown in red as “a deleted connection”.
Tags that summarise the escalation chain (“then #ops (Slack) after 10 min”) and the noise control (“counts duplicates for 1 h”, “groups by service for 1 h”).
In red, “Expression failed” with how long ago and the reason, when the route’s expression could not be evaluated for an event. The note is cleared when the route is saved.

Ordering

The up and down arrows move a route one place. The change is saved at once. A new route is added at the end of the list, so move it up if it has to be evaluated before others.

Search

The search box (“Name, topic or connection”) keeps the routes whose name, topic or connection names contain every word you type. It looks at the connections of a route’s own targets and of its escalation steps. The numbers in the circles keep showing each route’s real place in the order. While the list is searched the arrows are disabled, with the note “Routes cannot be moved while the list is searched.”

Turn off, edit, delete

Turn off / Turn on switches a route without opening it. A route that is off matches nothing.
Edit opens the route in the editor below the list.
Delete asks first, and warns that events only this route matched will no longer be sent anywhere.

The editor

New route in the top right, or Edit on a row, opens the editor under the list. Fill in the sections from top to bottom and press Create route or Save route. The server checks the route when you save; a problem is shown in red above the buttons and nothing is saved.

Name

Required, up to 100 characters.

Which events

The conditions an event must meet. All the ones you fill in must hold. Leave everything empty to match every event.

Field	Meaning
Topic	An exact topic, or a pattern in which `` matches any run of characters, as in `orders.`.
Minimum severity	Any severity, or `info`, `warning`, `error` or `critical`.
Source	Any source, or one source.
Add label condition	Adds a row: a label key, then equals with a value, matches with a regular expression, or is present. A row without a key is ignored.
Expression	Optional. A test the event must also pass. It can read `topic`, `severity`, `status`, `title`, `labels` and `payload`, for example `payload.amount > 100 and labels.env == 'prod'`.

The line “Matches:” under the fields repeats the conditions in words. The expression language is in Expressions and templates.

Send to

One row per target. A route needs at least one.

Column	Meaning
Connection	Where the message goes. Connections are made under Connections.
Destination	Shown for connections whose channel takes one, labelled with what that channel calls it. It is optional and overrides the connection’s own. For other connections the column reads “The connection’s own”.
Wording	The event’s own wording, or a template from Templates.

Add another connection adds a row. Each target gets its own notification.

If nobody acknowledges

The escalation chain. Add a step adds a step with a delay of 15 minutes and one target to choose. For each step set “after” and a unit (seconds, minutes or hours), and under “tell” the targets, which work like the rows of Send to. The delay of a step counts from the step before it, and the first from the first message; beside the delay the editor shows the total, for example “10 min after the first message”. Remove step deletes one.

See Escalation and acknowledgement for when steps go out and what stops them.

Noise control

Without any of these, every matching event is sent at once. Each checkbox opens its own fields. The line “Now:” sums up what is switched on. What each one does is explained in Noise control.

Checkbox	Fields	Starting values
Count repeats of the same event instead of sending them again	For this long after the first one; What makes two events the same (optional, an expression such as `labels.order`; empty uses the event’s dedup key, or its topic and labels)	10 minutes
Collect events and send them as one message	Labels to group by (separated by commas; empty makes one group per connection); Wait before sending; Send again while still open, every (empty sends once)	wait 30 seconds
Hold messages during quiet hours and send one digest after	Time zone (a list of common zones is offered; any IANA name can be typed); From and Until; On the nights starting (no day chosen means every day); Send anyway at or above a severity	your browser’s time zone, 22:00 to 07:00
Limit how many messages are sent	At most this many; In every	5 in every 5 minutes
Tell the target when it is resolved	none	ticked

On, and stopping

Route is on: untick to keep the route without using it.
Skip the routes below when this one matches: makes this a stopping route.

The tester

The Try an event card shows what the routes would do with one event. Nothing is stored and nothing is sent.

Choose the Event. The menu lists the 20 newest events by time and title, and starts on the newest. Choose An event I write here to edit a sample as JSON under Event as JSON; it needs at least a topic and a title.
Read the result. It is recalculated shortly after you change the event, or anything in the editor.

The result has one entry per route, in evaluation order:

Shown	Meaning
matched	The route matches. Its targets follow.
not matched	A condition does not hold.
off	The route is turned off.
“skipped, an earlier route stops here”	A stopping route above it matched.
“too mild to match, but it resolves what this route opened”	A resolved event below the route’s minimum severity, which closes a notification this route has open.
“not matched: too mild, and nothing of this route is open”	The same kind of event, with nothing to close.
“expression failed:” and a reason	The route’s expression could not be evaluated.

For a matching route, each target shows what noise control would do with the message right now, who it goes to, and the message title after the template is applied:

Outcome	Meaning
sent	A message would go out now.
not sent	It would be suppressed.
joins an open notification	It would be counted into a notification that is already open.
opens a group	It would start a group that is sent after the wait.
held	It would be held, for quiet hours or a rate limit.
resolves an open notification	It would close an open notification.

Under the outcome, the steps that led to it are named: Silence, Resolved event, Duplicates, Grouping, Quiet hours, Rate limit. In the first screenshot the last route shows “Silence: silenced: Disk migration on db-3”.

The tester uses the state of the instance at that moment: the active silences and the notifications that are open. The same event can therefore give a different answer a minute later.

Testing unsaved changes

While the editor is open, the tester uses the route as it stands in the editor in place of the saved one, and tags it being edited. A new route is tried last, where it would be added, under the name “New route” until you name it. This lets you check a condition or a template before saving.

If the draft is not valid yet, for example an expression that does not parse, the tester shows the server’s message in red instead of a result.
